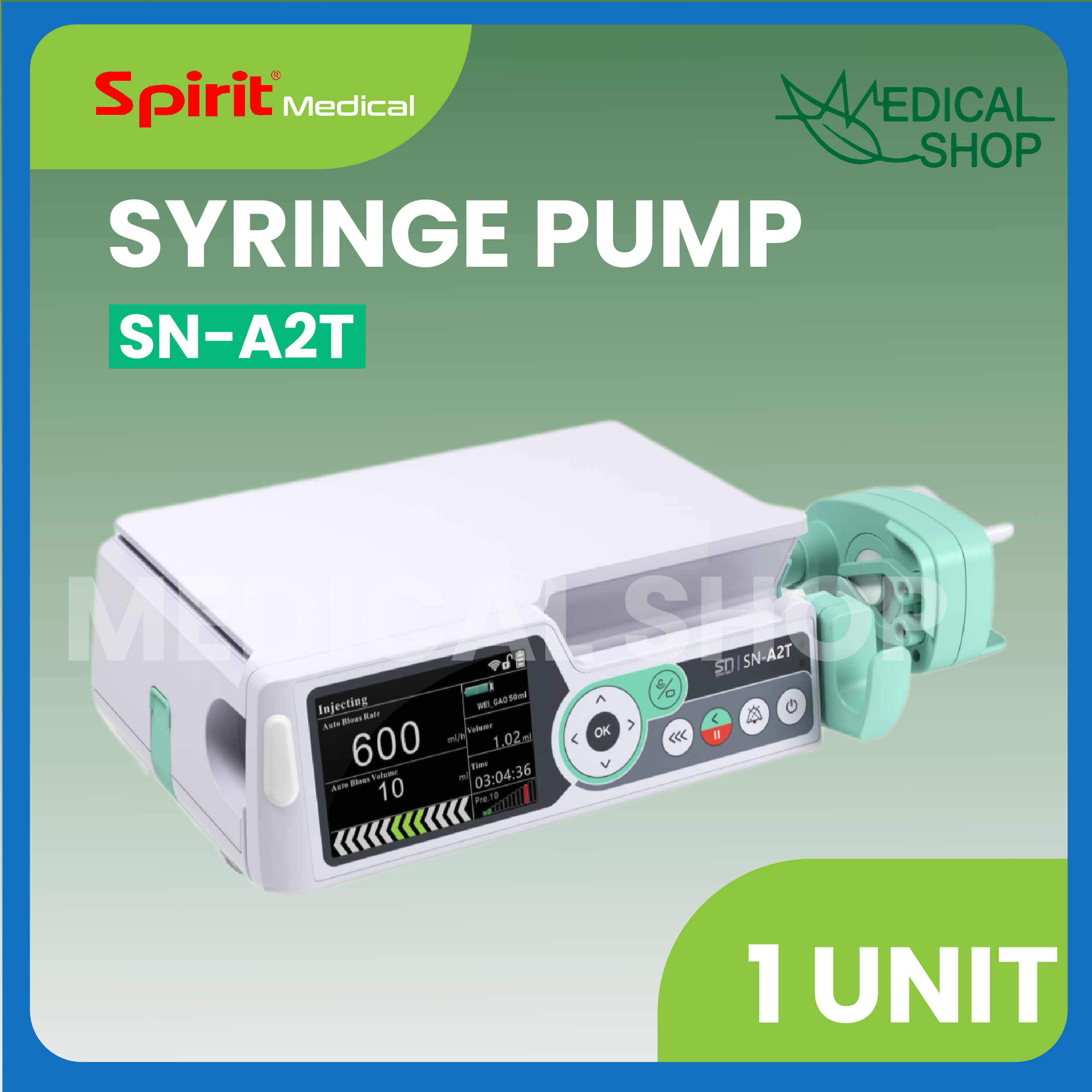

SYRINGE PUMP SN-A2T SPIRIT
Merupakan peralatan medis yang berfungsi untuk memasukkan obat berwujud cairan ke dalam tubuh pasien
dengan ukuran dan waktu tertentu secara otomatis. Prinsip kerja syringe pump adalah mengatur
laju cairan yang dimasukan ke dalam tubuh dengan satuan ml/jam.
| Infusion Mode | Time Mode, Body-weight Mode, Micro Mode, Sequence Mode, Loading Dose Mode,
Gradient Mode ,TIVA |
| Syringes | 5,10,20,30,50/60mI |
| Accuracy of flow rate | *2% |
| Flow rale | 50mI Syringe: 0.1 ml/h —1500mI/h |
| 30mI Syringe: 0.1 ml/h —900mI/h | |
| 20mI Syringe: 0.1 ml/h —600mI/h | |
| 10mI Syringe: 0.1 ml/h —400ml/h | |
| 5mI Syringe: 0.1 ml/h —150ml/h | |
| 0.1-99.99mI/h, increment 0.01mI/h | |
| 100-999.9ml/h, increment 0.1mI/h | |
| 1000-1500ml/h, increment 1mI/h | |
| Preset Volume | 0.01-9999.99mI, increment:0.01ml 0.01-9999.99mI, increment:0.01ml |
| Delivered Volume KVO Flow rate | 0.1-5mI/h |
| BOLUS | 50mI Syringe: 5 ml/h —1500ml/h , default: 1500mI/h, |
| 30mI Syringe: 5 ml/h —900ml/h , default: 900mI/h : | |
| 20mI Syringe: 5 ml/h —600mI/h , default: 600mI/h ; | |
| 10mI Syringe: 5 ml/h —400mI/h , default: 400ml/h: | |
| 5mI Syringe : 5 ml/h —150mI/h , default: 150mI/h: | |
| Occlusion Detector Pressure | The alarm threshold is between 13.3kPa-120kPa with 12 levels divided linearly;
The default level is 5 in Micro mode, The default level is 8 in other infusion mode. |
| History | More than 2000pcs |
| Special Function | Supporting pump stackable with working station, Relay infusion, Keypad Lock, Adjusting rate on infusion,
Release pressure automatically, Extension tube off alarm, Multi-drection fixing clamp, Night mode, Volume adjustment,Dynamic pressure detector, Drug library |
| Alarms | Liquid Residue Alarm, Injection Completed KVO Alarm, KVO Completed Alarm,
Tube Occlusion Alarm, Net Power Not Connected Alarm, System Power Failure Alarm, No Operation Timeout Alarm, Syringe Specification Error Alarm, Push Rod Off Alarm, Overspeed Alarm, Battery Low Alarm, Battery Exhausted Alarm, System Fault Alarm, Extension Tube Alarm. |
| Communication | RS485 WIFI |
| Protection Class | Class lI,Type CF,IP33 287”166”8 2(mm),2.1KG |
| Dimension/Weight | DC Power interface, General Communication Interface ( Nurse call, RS485) |
| Interface | a. AC Adapter |
| Power | Input: 100-240Va.c,50/60Hz,40VA |
| Output: 15Vd.c,2.0A | |
| b. DC Power: DC 12V | |
| c. Battery: 7.4V Li, 2600mAh or 5200mAh | |
| Recharging time: Approx 8 hours when power on; Approx 4 hours when power off | |
| Battery operating time: | |
| 10 hours@5200mAh at 5mI/h | |
| 5 hours@2600mAh at 5mI/h | |
| Environment | Operating condition: |
| Ambient Temperature: +5 ”C -+40 ”C , | |
| Relative Humidity: 15%-95% I Non-condensed › Pressure: 57.0 kPa – 106.0kPa , 3000m Altitude | |
| Storage condition: | |
| Ambient Temperature: -40 ”C -+70 ”C , | |
| Relative Humidity: 10% – 98% t Non-condensed › Pressure: 50.0 kPa – 106.0kPa |
